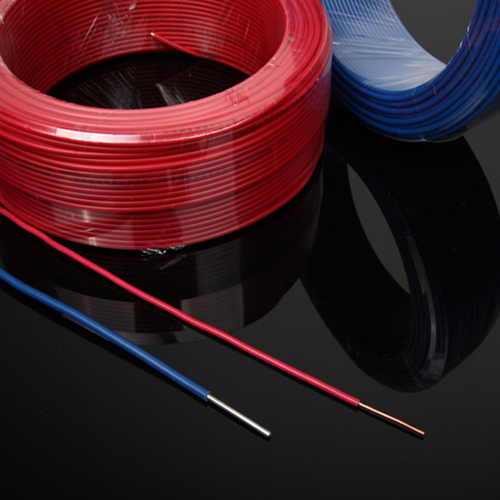

Solid CU/PVC Single Core Wire (BV)

Description
Construction: Solid annealed copper wire as conductor (Class 1), PVC insulated single core wire.
Code Name: H05V-U ( 0.5mm² ~ 1.0mm² );  H07V-U ( 1.5mm² ~ 10mm² )
Voltage: 300/500V for H05V-U;  450/750V for H07V-U.

Application
The non-sheathed single core wire is used for fixed wiring. It is laid in dry, normal and light duty conditions, such as in conduit and under plaster in building.

Manufacturing Standards
GB/T 5023-2008, BS 6004, IEC 60227
